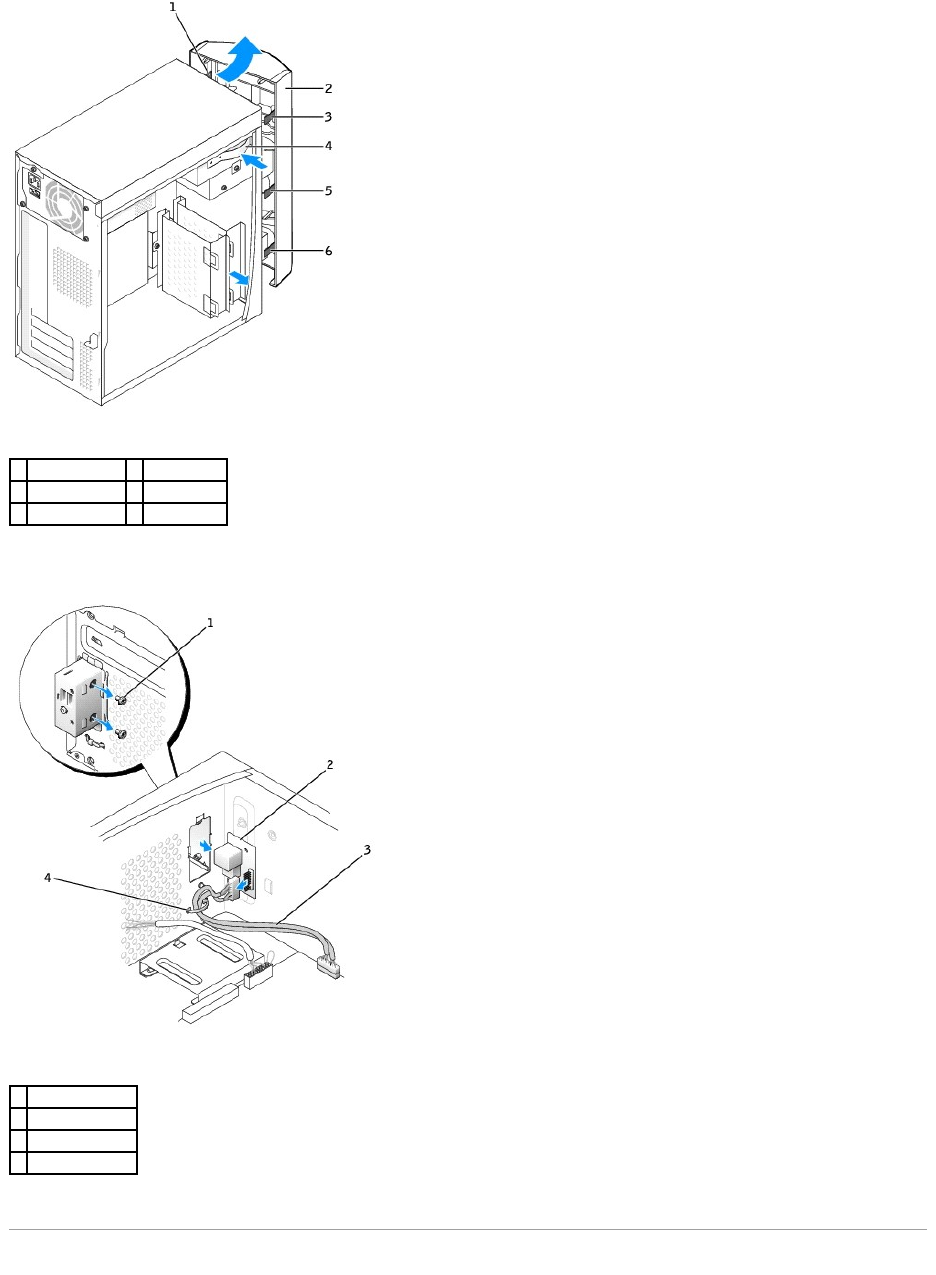

4. Remove the two screws that secure the I/O panel to the computer.





5. Remove the I/O panel and disconnect the sound/USB cable from the I/O panel.



1

side hinges (3)

4

release lever

2

front panel

5

middle tab

3

top tab

6

bottom tab

1

screws (2)

2

I/O panel

3

sound/USB cable

4

tie wrap cord
